ASTM A387 Grade 12 Class 2

Posted:2015-12-07 22:27:11

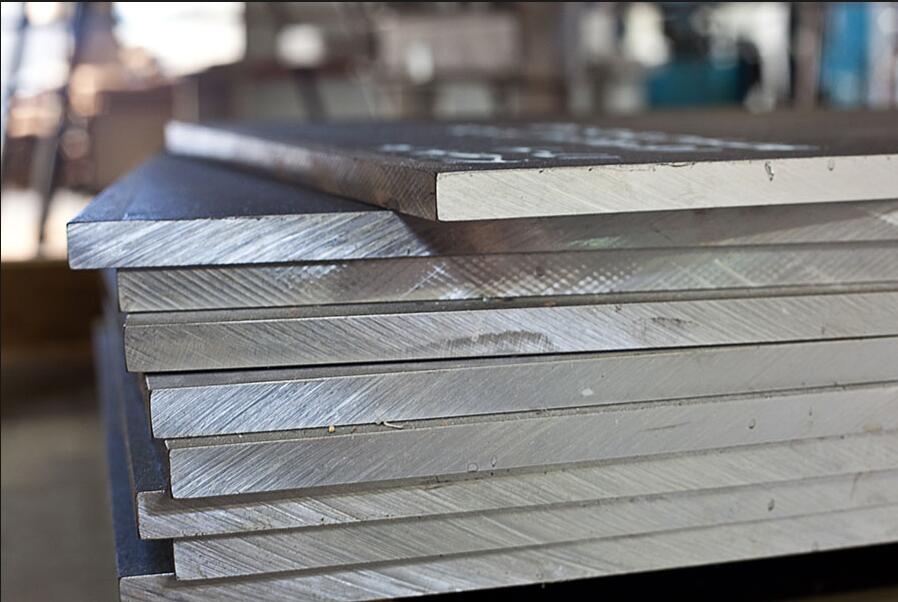

Our A387 Gr12 Cl2 plates come with mill certificate in accordance with EN 10204 3.1 or EN 10204 3.2.The steel has a wide range of uses including industrial boilers and pressure vessels, especially in environments where high temperature levels are common.

ASTM A387 Grade 12 Class2(A387GR12CL2) Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.

STEEL DIMENSION:

  • Thickness: 6 – 60 mm
  • Width: Up to 3 metres
  • Length: Up to 12 metres

A387 GRADE 12 CLASS 2 EQUIVALENTS

Normal equivalents for A387 Gr 12 Cl2 are:

  • BS1501 620 B
  • EN10028-2 13CrMo4-5
  • DIN 17155 13CrMo4-4

A387 Gr.12 CL.2Chemical Composition

Grade

The Element Max (%)

C

Si

Mn

P

S

Cr

Mo

A387 Gr.12 Cl.2

0.04-0.17

0.13-0.45

0.35-0.73

0.035

0.035

0.74-1.21

0.40-0.65

Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

If you need more stock steel plates in pressure vessel steel plate or To find out more about our services and ASTM A387 Grade 12 Class 2 steel plates which we can supply directly to you from stock or from the mill, please contact us by email:[email protected]
